Having difficulties building an interactive drag and drop game

I have spent days and hours trying to figure this out and have gone through so many different coding techniques, but I'm not well-versed in javascript so I'm having a lot of trouble. My goal is to create a type of drag-and-drop interaction. Think collage maker, or room designer, or outfit builder. Something where there are organized draggable elements (preferably in clickable dropdowns but scrollboxes will work). The viewer can drag elements freely to design.

I've been able to successfully create drag and drop items inside a scroll box, but haven't been able to drag them outside. I've tried the clone helper but with no success. They either clone, then disappear on drop, or they shrink in size when I pick them up. Or the drag option is gone completely. This is a project I'm so excited about and am getting so frustrated. So any guidance is greatly appreciated!

I'm sharing a link to a photo that describes what my overall vision is, along with coding I'm currently working on. Thanks so much.

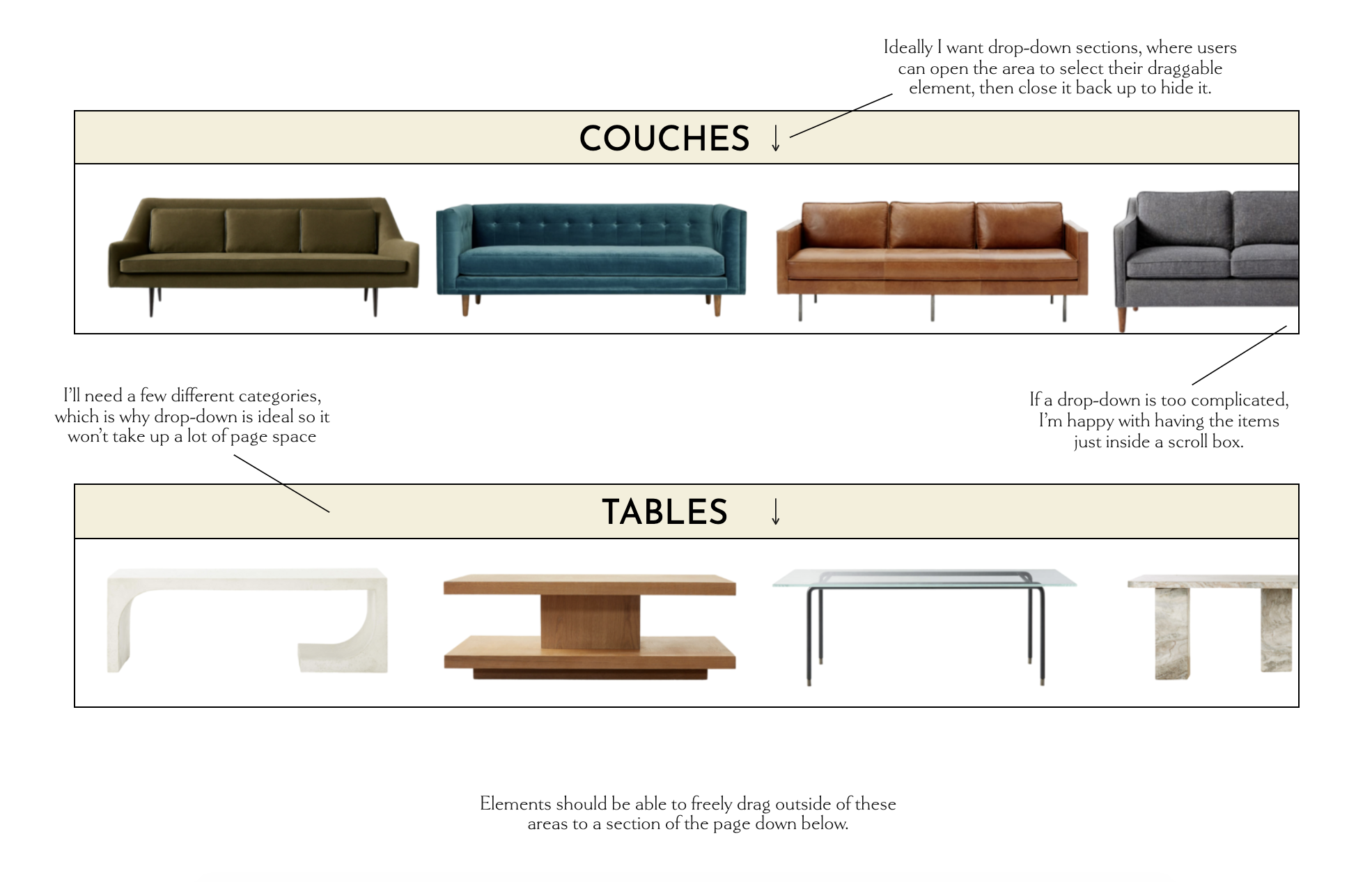

VISION IN PHOTO > https://static.showit.co/file/WEYl8mIATbiBIgua-VnoIg/118367/screen_shot_2022-01-30_at_12_52_28_pm.png

CURRENT CODING (This doesn't include the help code, because I haven't been able to use it successfully) So right now this is just a scroll box with the drag and drop feature >

<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/jqueryui/1.12.1/jquery-ui.min.css" integrity="sha512-aOG0c6nPNzGk+5zjwyJaoRUgCdOrfSDhmMID2u4+OIslr0GjpLKo7Xm0Ao3xmpM4T8AmIouRkqwj1nrdVsLKEQ==" crossorigin="anonymous" referrerpolicy="no-referrer">



<!--TABLES-->


<div class="tables">

<div id="tables" class="draggableContainer">
<p>
<img class="draggableImage1" src="https://static.showit.co/file/KUe1-FuzROys0_APdzMgtQ/118367/untitled_design_52.png">
</p>
</div>


<div id="tables" class="draggableContainer">
<p>
<img class="draggableImage2" src="https://static.showit.co/file/Z0Dv7p_sSJm9bCTRLcP8gg/118367/4.png">
</p>
</div>

<div id="tables" class="draggableContainer">
<p>
<img class="draggableImage3" src="  https://static.showit.co/file/x4PJjyM-QKyWCsejlN1Gkg/118367/3.png">
</p>
</div>



</div>



<style>


* {
margin: 5px;
padding: 0px;
}


.tables {
min-height:140px;
padding:0px;
background-color:none;
border: 1px solid #000;
overflow:scroll;

}


.draggableImage1 {
float:left;
width:20%;
}

.draggableImage2 {
float:left;
width:20%;
}

.draggableImage3 {
float:left;
width:20%;
}

.draggableImage4 {
float:left;
width:20%;
}

#tables {
width:180%;
}

</style>


<script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/2.1.3/jquery.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/jqueryui/1.11.2/jquery-ui.min.js"></script>

<script src="https://cdnjs.cloudflare.com/ajax/libs/jqueryui-touch-punch/0.2.3/jquery.ui.touch-punch.min.js" integrity="sha512-0bEtK0USNd96MnO4XhH8jhv3nyRF0eK87pJke6pkYf3cM0uDIhNJy9ltuzqgypoIFXw3JSuiy04tVk4AjpZdZw==" crossorigin="anonymous" referrerpolicy="no-referrer"></script>


<script>
  $(function() {
    $(".draggableContainer").draggable();
  });
</script>
